Product Details:
Payment & Shipping Terms:
|
Product: | Forged Steel Round Bar | Producing: | Forged |
---|---|---|---|
Process: | Hot Rolled | Sharp: | Round |

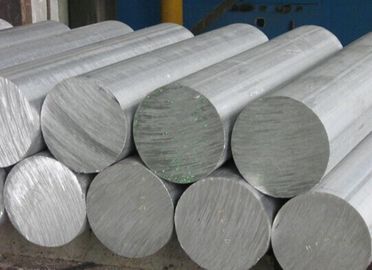

Forged / Hot Rolled Steel Round Bar For Plastic Molds JIS SKD61 , ASSAB 8407
Quick Detail:
Steel Grade: |
DIN1.2344/SKD61/4Cr5MoSiV1/H13/8407
|
Standard: |
AISI,ASTM,DIN,GB,JIS
|
Dimensions: |
20mm-300mm
|
Place of Origin: |
China (Mainland)
|
Brand Name: |
SISCO
|
Model Number: |
DIN1.2344/SKD61/4Cr5MoSiV1/H13/8407
|
Technique: |
Forged/Hot Rolled/Cold Drawn
|
Application: |
Hot Work Tool Steel/Plastic Molds
|
Alloy Or Not: |
Is Alloy
|
Special Use: |
Mold Steel
|
Type: |
Alloy Steel Bar
|
Surface Treatment:: |
Black/Machined/Peeled/Turned
|
Shape:: |
Round bar/Flat/Plate/Sheet
|
Delivery Condition:: |
Hot rolled or forged,Peeled or black surface
|
Trade Term:: |
FOB&CIF&CFR
|
Equivalent grades:: |
GB 4Cr5MoSiV1/AISI H13/JIS SKD61/ASSAB 8407/DIN 1.2344
|
Material:: |
Die steel H13/Tool steel H13/Mould steel H13
|
Quality inspection:: |
UT,chemical composition,grain size
|
Description:
Packing detail: standard seaworthy packing
Delivery detail: Within 5-20 days after receiving confirmation of prepayment
4cr5mosiv1/ H13 / Skd61 / 1.2344
9years experience
ISO9001/2000 certification
Competitive price
Fast delivery
Applications:
Hot Work Tool Steel / Plastic Molds
Specifications:
Round bar Dia: 45mm~510mm Length:2000mm or as required
Flat bar Dia:20mm~300mm Length:50mm~810mm or as required
3. Technique:
Forged,Hot Rolled,Cold Drawn
4. Chemical Composition (%):
Grade | C | Si | Mn | Cr | Mo | V | P | S |
4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | ≤0.030 | ≤0.030 |
H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | ≤0.030 | ≤0.030 |
SKD61 | 0.32-0.42 | 0.80-1.20 | ≤0.50 | 4.50-5.50 | 1.00-1.50 | 0.80-1.20 | ≤0.030 | ≤0.030 |
8407 | 0.39 | 1.00 | 0.40 | 5.20 | 1.40 | 0.90 | ≤0.030 | ≤0.030 |
1.2344 | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 | ≤0.030 | ≤0.030 |
Competitive Advantage:
1. We offer you our best price with good quality of the materials.
2. We will deliver the materials strictly according to the the delivery date noted on the contract.
3. We also always have the huge ready stock for sell.
4. We have complete after-sale service to deal with the problems in time.
.
