Product Details:
Payment & Shipping Terms:
|
Product Name: | Stainless Steel Seamless Pipe | Application: | Chemical,petroleum, Medicine, Food, Nuclear Power, Boiler, Gas, Machinery, Ship Building |
---|---|---|---|
Size (OD): | 6mm - 630mm | Thickness: | 0.5mm - 25mm |
Delivery Condition: | Annealed | Grade: | 304L , F321 , 310S , 316L , 316Ti , 317 , 347H , 904L |
Standard: | ASTM / DIN / JIS / GB | Treatment: | Cold Rolled / Cold Drawn |
High quliaty for SS 304 316 Mirror Polish Seamless Stainless Steel Pipe
Specifications:
product analysis:
An analysis should be made from a billet or a pipe of each furnace to determine the chemical composition should be in accordance with the requirements of the regulations.
Technical Parameter for Seamless Pipe |
Tensile Strength |
520-530Mpa |
Yield Strength 0.2% |
205 - 225 |
|
Elongation % |
35 - 38 |
|
Corrosion test |
ACCEPTABLE |
|
Flaring |
ACCEPTABLE |
|
Hydraulic |
ACCEPTABLE |
|
Eddy Current |
ACCEPTABLE |
|
PMI |
ACCRPTABLE |
|
Surface |
Acid wash, annealing |
|
Ends |
Beveled and Caps |
|
Packing |
Woven bags |
About 2ton for each bundle |
Dimension |
OD Size |
6mm - 630mm |
Thickness |
0.5mm - 25mm |
|
Length |
5 - 5.8m, 6m,double random length |
|
Certificate |
ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV |
Description:
Each pipe shall be done in the form of non-destructive testing or water pressure tests, only if ruled in the order, the experimental type is made of the manufacturing options.
Item Standard |
ASTM A312/A312M |
|
Grade |
TP304 |
TP304L |
TP316 |
TP316L |
|
TP317 |
TP317L |
|
TP347 |
TP310H |
|
|
TP321H |
|
Yield Strength σ0.2(Mpa)
|
≥170; ≥205 |
|
Tensile Strength σ0.2(Mpa) |
≥485; ≥515 |
|
Elongation σ5(%)
|
≥35 |
|
Flattening test (mm) |
H=1.09t/(0.09+t/D)And Test Readiness |
Competitive Advantage:
Our factory was certificated by BV/ISO/LR/RINA/CCS/GL/ABS/DNV, which can improve the quality.
We participated in many famous projects with our pipes.
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for producing stainless steel seamless pipe,both producing and
testing
machine is advanced and perfect.
Applications:
Used in industries as environmental protection, boiler, gas, war industry, machinery, ship building and chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace so on .

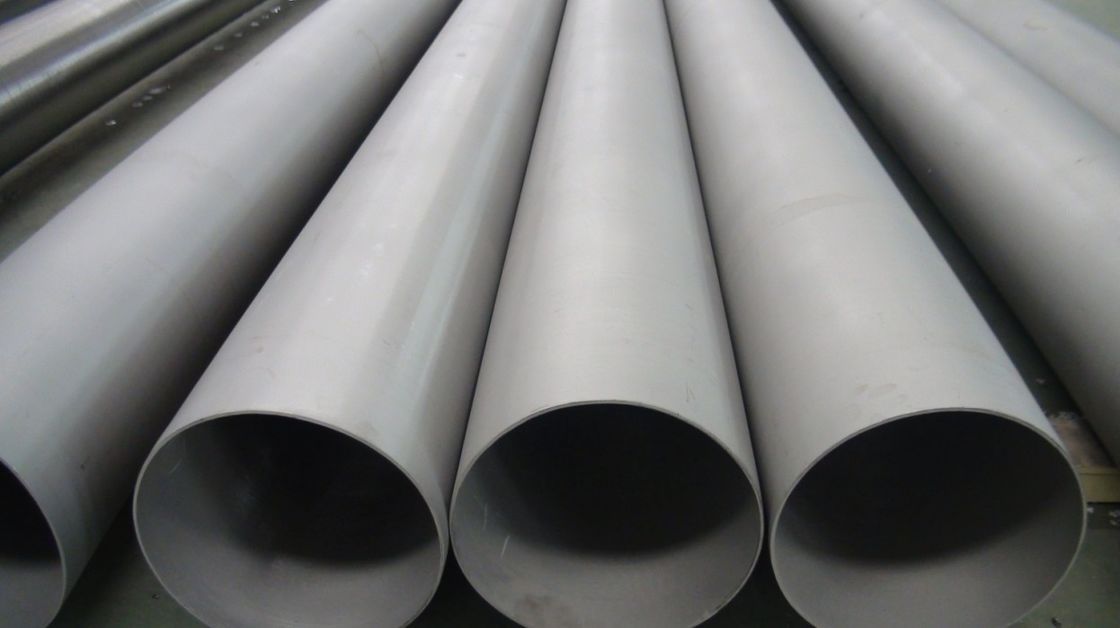

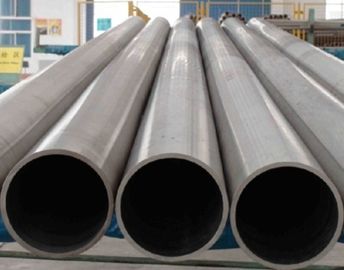

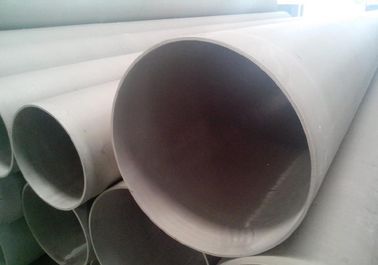

Pictures:
