Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Seamless Pipe | Application: | Chemical,petroleum, Medicine, Food, Nuclear Power, Boiler, Gas, Machinery, Ship Building |
|---|---|---|---|
| Size (OD): | 6mm - 630mm | Thickness: | 0.5mm - 25mm |
| Delivery Condition: | Annealed | Grade: | 304L , F321 , 310S , 316L , 316Ti , 317 , 347H , 904L |
| Standard: | ASTM / DIN / JIS / GB | Treatment: | Cold Rolled / Cold Drawn |

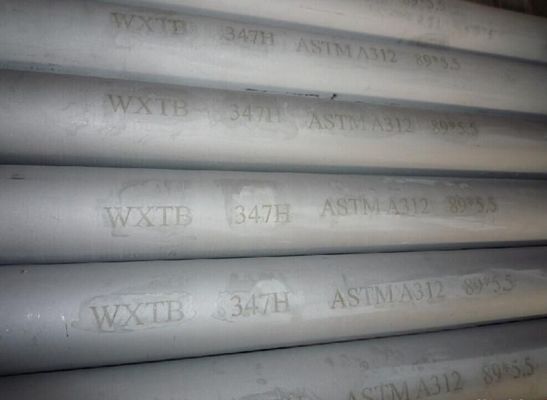

Large Diameter Stainless Steel Seamless Pipe 6 Inch / Seamless Round Tube
Specifications:
347 stainless steel pipe: 18% chromium, 11% nickel
347 stainless steel tube =0Cr18Ni11Nb containing Nb increases the resistance to intergranular corrosion, has the strength to improve, the plastic is not reduced. Reduce the thickness of the material. Strength component for structure.
347 stainless steel tube heat treatment: solid solution treatment (c) 980-1150 quick cooling
|
Technical Parameter for Seamless Pipe |
Tensile Strength |
520-530Mpa |
|
Yield Strength 0.2% |
205 - 225 |
|
|
Elongation % |
35 - 38 |
|
|
Corrosion test |
ACCEPTABLE |
|
|
Flaring |
ACCEPTABLE |
|
|
Hydraulic |
ACCEPTABLE |
|
|
Eddy Current |
ACCEPTABLE |
|
|
PMI |
ACCRPTABLE |
|
|
Surface |
Acid wash, annealing |
|
|
Ends |
Beveled and Caps |
|
|
Packing |
Woven bags |
About 2ton for each bundle |
|
Dimension |
OD Size |
6mm - 630mm |
|
Thickness |
0.5mm - 25mm |
|
|
Length |
5 - 5.8m, 6m,double random length |
|
|
Certificate |
ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV |
|
Description:
A high alloy steel corrosion resistance in the air or chemical corrosion, stainless steel is a beautiful surface and good corrosion resistance, without plating surface treatment, its inherent surface properties of stainless steel, used in many aspects of steel, often called stainless steel. Represents the properties of 13 steel, chromium nickel steel and high alloy steel 18-8.
From the perspective of metallography analysis, because stainless steel containing chromium and chromium on the surface to form a thin film, the film off the invasion and oxygen in steel corrosion effect.
In order to keep the corrosion resistance of stainless steel, the steel must contain more than 12% of the chromium.
|
Chemical |
C |
Si |
Mn |
Cr |
Ni |
S |
P |
Nb |
|
% |
≤0.08 |
≤1.00 |
≤2.00 |
17.00～19.00 |
9.0～13.0 |
≤0.030 |
≤0.035 |
≥5*C% |
Applications:
Used in industries as chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace,
environmental protection, boiler, gas, war industry, machinery, ship building and so on.
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for producing stainless steel seamless pipe,both producing and testing
machine is advanced and perfect.
Our factory was certificated by BV/ISO/LR/RINA/CCS/GL/ABS/DNV, which can improve the quality.
We participated in many famous projects with our pipes.
