Product Details:
Payment & Shipping Terms:
|
| Product Name: | ERW Steel Pipe | OD: | 60MM - 820MM |
|---|---|---|---|
| Thickness: | 1.5mm - 40mm | Grade: | ASTM A179/A192/A53/A106, API 5L X42/X52/X56/X60/X65/X70, |
| Standard: | API 5L, API 5CT, ASTM | Techniqul: | Welded |
| Application: | Transport Oil, Petrol, Water, Gas | Test: | NDT Operator Qualification |

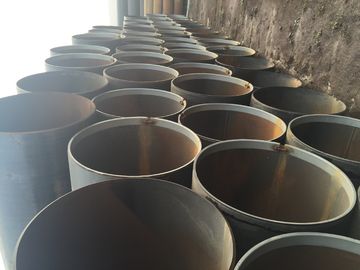

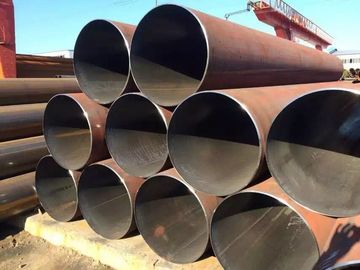

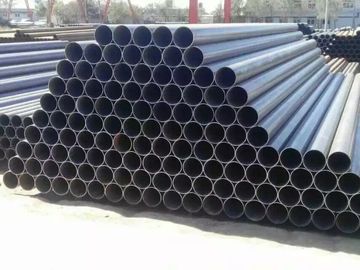

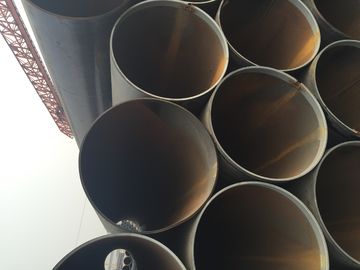

ERW Pipe GB / T9711.1 - 1997 Q235 Carbon Steel Tube X42 X46 X56
Specifications:
Standard: 5L API - American Petroleum Institute standards (PSL1, PSL2)
GB/T9711 - China National Standard (GB/T9711.1, B/T9711.2)
Usage: used in petroleum and natural gas industry in the oxygen, water, oil delivery pipe;
Can also be used for engineering construction, Lin Yuan road beautification, drainage pipeline, plant steel hook construction, high voltage power tower.
Main production of steel pipe grades: B, X42, X52, X56, X60, X65, X70, X80,
L290 L320 L360 L390 L450 L485 L245 and other users to supplement the technical conditions of the material.
Outside diameter (unit: inch) 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6, 8, 10, 14, 16, 18, 20, 12, 22~40~56;
Wall thickness level: SCH20, SCH30, SCH40, SCH60, SCH80~160, SCHSTD, SCHXS, SCHXXS
API5L standard for X52 petroleum pipeline pipe
|
Packing |
1.Bundle packing. 2.Marking: as customer’s requirement. 3.Painting varnish coating on the pipe 4.Plastic caps with both ends. |
|
|
Dimension |
OD Size |
60- 820 mm |
|
Thickness |
1.5-40mm |
|
|
Length |
5.8m, 6m, 11,8m, 12m or as your required. |
|
|
Surface |
Black painting,black varnish,transparent oil,hot galvanized, 3PE,epoxy coating,BE,PE,etc. |
|
|
Application |
1.Low and middle pressure fluid transportation pipeline 2.Casing Tube 3.Boiler pipe 4.Petroleum and natural gas industry 5.Chemistry industry 6.Electric industry |
|
|
Supply |
1.seamless steel pipe 2.ERW steel pipe 3.Steel casing 4.Tubing 5.Hot-rolled steel pipe 6.Spiral steel pipe 7.Hot-galvanized steel pipe |
|
Description:
API 5L seamless steel pipe is a pipeline steel seamless steel pipe. Seamless steel pipe line steel material: GR.B, X42, X46, 52, X56, X60, X65, X70,. Linepipe is the oil out of the ground, steam, water, through pipelines conveying pipe to oil and gas industry enterprises, pipeline including seamless and welded steel pipe, the pipe ends are flat end, threaded end and the socket end; the connection mode for welding, coupling, bearing in connection etc..
|
Payment |
1. by TT 30% in advance or L/C at sight, the balance against copy of B/L. |
|
Delivery time |
A. 3 days if this goods is stock. B. 15 days if goods will be produced after order |
|
Price Validity |
Within 15 days |
|
Capability |
3000 tons / month for usual size and grade |
|
MOQ |
10 tons for each size |
|
Sample |
Is available by free, the express by buyer’s account |
|
Price Term |
FOB, CNF, CIF, FCA |
Table of performance parameters of 5L API seamless steel tube
|
Material
|
GR.B
|
X-42
|
|
OD tolerance
|
1%
|
%
|
|
Thickness tolerance
|
12.5%
|
12.5%
|
|
length tolerance
|
2%
|
2%
|
|
beveled degree
|
35°
|
35°
|
|
beveled blunt edge
|
1/16inch±1/32inch
|
1/16inch±1/32inch
|
|
test hydrastic and keeping time
|
1070psig 5 seconds
|
1070psig 5seconds
|
|
tensile strength
|
60000=414mpa
|
60000=414mpa
|
|
yield strength
|
35000=241mpa
|
42000=290mpa
|
|
Elongation
|
≥30%
|
≥30%
|
|
MARKING content
|
API 5LSeamless steel pipe 6“ SCH40 13560
|
|
|
flatness
|
2%
|
2%
|
|
weld seam testing stype
|
100% X-ray
|
100% X-ray
|
|
non-expand pipe
|
yes
|
yes
|
|
plastic caps
|
with
|
with
|
|
painting outside and inside
|
non
|
non
|
|
quantity
|
length/weight
|
length/weight
|
Applications:
1.Low and middle pressure fluid transportation pipeline
2.Casing Tube
3.Boiler pipe
4.Petroleum and natural gas industry
5.Chemistry industry
6.Electric industry
Competitive Advantage:
1>Before Formed tube : Assurance of compliance
Review of Sub-vendor ; quality plan ;
Review of samples certification (MTC)
Chemical analysis
Tension &Mechanical tests
2>Formed tube : NDT operator qualification
Eddy current testing
Ultrasonic testing
3>Finished tube : MT testing for Edge of Pipe(If Exist)
Visual examination
Thickness measurment (Continuous Ultrasonic)
Inside/Out Side/Length dimension control.
Straightness
Visual & Dimension check of edge
Weight control
Marking
Material & NDT retest (if required)
4>Ready for delivery : Protection coating
Certificate of compliance
Packing check
Shipping mark and number check
