Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled

China Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled supplier
Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled supplier Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled supplier Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled supplier Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled supplier

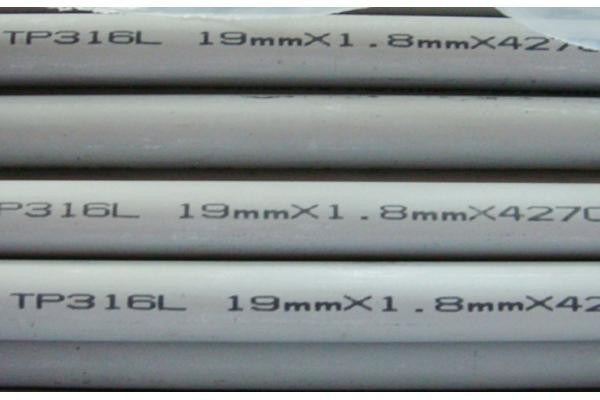

Large Image :  Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled

Product Details:

Place of Origin: CHINA
Brand Name: SISCO
Certification: ISO/BV/RINA/LR/ABS/DNV
Model Number: SIS-H212

Payment & Shipping Terms:

Minimum Order Quantity: 2 ton each size
Price: USD2000USD/TN
Packaging Details: packing in waterproof film first, then put bundle in wooden case or iron case
Delivery Time: 20-40 days
Supply Ability: 1000 ton per month
Contact Now
Detailed Product Description
Grade: 304L 321 316 316Ti 317 904 31803 2205 OD: 1/8-1/4 Inch
Thk: Sch5s-sch160 Length: 5-5.8m, 6, 12, U Shape Length
Process: Anealing And Pickling Treatment: Cold Drawn/cold Rolled
Standard: ASTM A213/JIS/DIN Application: Hext Exchanger

Industrial Condenser Heat Exchanger U Tube Of Oil Chemical Equipment





Specification:



Shell type heat exchanger of a kind of oil chemical equipment, from the tube box, shell and tube bundle and other major components, because of its heat pipe into the U shaped and named. U tube type heat exchanger is only one tube plate, both ends of the tube are fixed on the same tube plate.



Technical Parameter for

Heat Exchanger Tube

Tensile Strength

520-530Mpa

Yield Strength 0.2%

205 - 225

Elongation %

35 - 38

Corrosion test

ACCEPTABLE

Flaring

ACCEPTABLE

Hydraulic

ACCEPTABLE

Eddy Current

ACCEPTABLE

PMI

ACCRPTABLE

Surface

Acid wash, annealing

Ends

Beveled and Caps

Packing

Woven bags

 About 2ton for each bundle

Dimension

OD Size

1 / 8 - 3 / 4 inch

Thickness

XS STD sch5 sch10 sch20 sch30 sch40 sch80 sch160

Length

5 - 5.8m, 6m,double random length

Certificate

ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV



Description:



Seamless steel tubes for heat exchangers are widely used in petroleum, chemical, thermal power, nuclear power, boiler manufacturing and so on.



In addition to the production of conventional heat exchanger tubes, can also produce over length (

Max 25M), ultra-thin series(Min0.5mm),And get the user.



Product manufacturing standard:



GB13296-2007

Stainless steel seamless tubes for boiler and heat exchanger

ASTM A213/213M

Boiler, superheater and heat exchanger for Seamless Ferritic and austenitic alloy steel

EN 10216-5

Seamless steel tubes for pressure delivery conditions



Major brands:TP304 TP304L TP304H TP316 TP316L TP316Ti TP316LN TP317 TP317L TP321 TP321H

TP347 TP347H TP310S UNS S31803 UNS S32205 UNS S32750 etc.



Product specification range:

φ16~76.2 x 0.4~10mm





Competitive Advantage:

Our factory is near to raw material market and high-speed way,  the producing cost is low.

Our factory have long history for producing heat exchanger tube, both producing and testing machine is

advanced and perfect.

We always cooperate with famous project and companies.



Heat Exchanger



Industrial Condenser Heat Exchanger U Tube Cold Drawn / Cold Rolled
