Product Details:
Payment & Shipping Terms:
|
| Product Name: | SSAW Pipe | Outside Range: | 219.0-2420.0 MM |
|---|---|---|---|
| Thickness Range: | 5.0-25.4 MM | Length: | MAX14 Or As Agreed |
| Standard: | API5L(PSL1/PSL2) | Grade: | GrB,X42-X70,X80,X90,X100,X120 |
| Surface Process: | With A Temporary External Coating Or As Agreed | Application: | Transportation Of Oil, Natural Gas And Other Vapor-liquid Objects, To Meet The High And Low Pressure Pipes Conveying Var |
| Highlight: | Spiral Welded Tube,Spiral Welded Pipe |
||

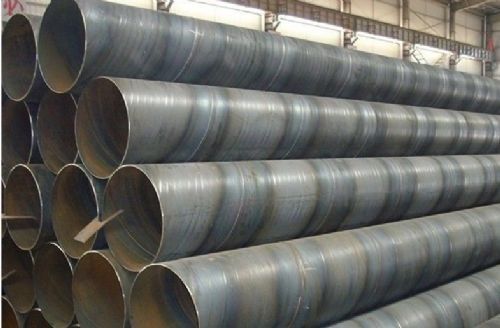

API5L SSAW Line Pipe As - rolled , Heat - treated Temporary External Coating
Specification:
Packaging & Delivery

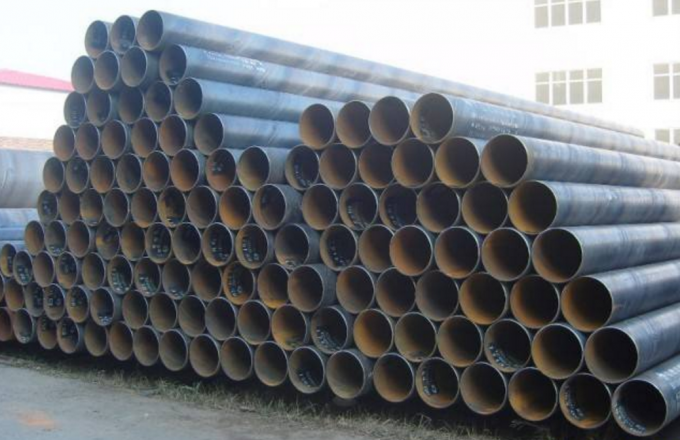

| Packaging Details: | steel pipes packaging in bundles tied with steel strips, in bulk, or according to customer's requirements |
| Delivery Detail: | 15-30days |
| Production | API 5L PSL1 PSL2 SSAW steel pipe |
| Process of manufacture | As-rolled,Heat-treated |
| Delivery condition | As-rolled,normalized, thermomechanical,tempered,quenched |
| Type of length | Fixed ruler and Double ruler |
| Inspection and Test | Tensile test,Hydrostatic test,CVN impact test,Non-destructive inspection and as agreed |
API 5L PSL1 SSAW Chemical Composition
| Pipe/Steel grade | C(%)≤ | Mn(%)≤ | P(%)≥ | P(%)≤ | S(%)≤ | V(%)≤ | Nb(%)≤ | Ti(%)≤ |
| L175/A25 | 0.21 | 0.6 | 0.03 | 0.03 | ||||
| L175P/A25P | 0.21 | 0.6 | 0.045 | 0.08 | 0.03 | |||
| L210/A | 0.22 | 0.9 | 0.03 | 0.03 | ||||
| L245/B | 0.26 | 1.2 | 0.03 | 0.03 | c,d | c,d | d | |
| L290/X42 | 0.26 | 1.3 | 0.03 | 0.03 | d | d | d | |
| L320/X46 | 0.26 | 1.4 | 0.03 | 0.03 | d | d | d | |
| L360/X52 | 0.26 | 1.4 | 0.03 | 0.03 | d | d | d | |
| L390/X56 | 0.26 | 1.4 | 0.03 | 0.03 | d | d | d | |
| L415/X60 | 0.26 | 1.4 | 0.03 | 0.03 | f | f | f | |
| L450/X65 | 0.26 | 1.45 | 0.03 | 0.03 | f | f | f | |
| L485/X70 | 0.26 | 1.65 | 0.03 | 0.03 | f | f | f | |
| a.Cu≤0.5%;Ni≤0.5%;Cr≤0.5% and Mo≤0.15% | ||||||||
| c.Unless otherwise agreed,Nb+V≤0.06% | ||||||||
| d.Nb+VT+Ti≤0.15% | ||||||||
| f.Unless otherwise agreed,Nb+V+Ti≤0.15% | ||||||||
| g.No deliberate addition of B is permitted and the residual B≤0.001% | ||||||||
API 5L PSL2 SSAW Chemical Composition
| Pipe/Steel grade | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ | V(%)≤ | Nb(%)≤ | Ti(%)≤ | CEiiw(%)≤ | CEpcm(%)≤ |
| L245/B | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | 0.43 | |
| L290/X42 | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.06 | 0.05 | 0.04 | 0.43 | |
| L320/X46 | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | 0.43 | |
| L360/X52 | 0.24 | 0.45 | 1.5 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | 0.43 | |
| L390/X56 | 0.24 | 0.45 | 1.5 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | 0.43 | |
| L415/X60 | 0.24 | 0.45 | 1.7 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | 0.25 | |
| L450/X65 | 0.18 | 0.45 | 1.7 | 0.025 | 0.015 | g | g | g | 0.25 | |
| L485/X70 | 0.18 | 0.45 | 1.8 | 0.025 | 0.015 | g | g | g | 0.25 | |
| L555/X80 | 0.18 | 0.45 | 1.9 | 0.025 | 0.015 | g | g | g | 0.25 | |
| L625/X90 | 0.16 | 0.55 | 2.1 | 0.02 | 0.01 | g | g | g | 0.25 | |
| L690/X100 | 0.16 | 0.55 | 2.1 | 0.02 | 0.01 | g | g | g | 0.25 | |
| L830/X120 | 0.1 | 0.55 | 2.1 | 0.02 | 0.01 | g | g | g | 0.25 | |
| a.The CEiiw limits apply if C>0.12% and the CEpcm limits apply if C≤0.12% | ||||||||||
| g.Unless otherwise agreed,Nb+V+Ti≤0.15% | ||||||||||
Tensile Properties
| Pipe/Steel grade | Yield strength(Mpa) | Tensile strength(Mpa) | ||
| minimum | maximum | minimum | maximum | |
| L245/B | 245 | 450 | 415 | 655 |
| L290/X42 | 290 | 495 | 415 | 655 |
| L320/X46 | 320 | 525 | 435 | 655 |
| L360/X52 | 360 | 530 | 460 | 760 |
| L390/X56 | 390 | 545 | 490 | 760 |
| L415/X60 | 415 | 565 | 520 | 760 |
| L450/X65 | 450 | 600 | 535 | 760 |
| L485/X70 | 485 | 635 | 570 | 760 |
| L555/X80 | 555 | 705 | 625 | 825 |
| L625/X90 | 625 | 775 | 695 | 915 |
| L690/X100 | 690 | 840 | 760 | 990 |
| L830/X120 | 830 | 1050 | 915 | 1145 |
Applications:
Used in petroleum,natural gas,gas,water supply,heat supply and other pipelines
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for trading SSAW steel pipe, with large stocks.
We always cooperate with famous project and companies.
