Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction

China Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction supplier
Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction supplier Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction supplier Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction supplier Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction supplier

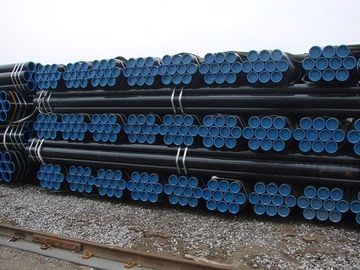

Large Image :  Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction

Product Details:

Place of Origin: CHINA
Brand Name: SISCO
Certification: API5L/ISO
Model Number: SIS-ERW212

Payment & Shipping Terms:

Minimum Order Quantity: 25 tons for each size
Price: negotiation
Packaging Details: packing in bundles
Delivery Time: 15-20days according to weight
Supply Ability: 3000 tons per month for regular size
Contact Now
Detailed Product Description
Product Name: ERW Steel Pipe Size: 219-820mm
Thickness: 6-25mm Grade: 20#,Gr.B,16Mn, Q235, X42 X52 X56
Standard: EN10219 EN10210,API, ASTM Treatment: HF Welding
Test: UT, Water Press, X-ray Application: Fluid Transport And Construction

Welding API 5L ERW Steel Pipe / ERW Carbon Steel Pipe OD Size 219mm - 820mm





Specifications:



ERW express resistance welding, resistance welding with high production efficiency, low cost, saving materials, easy automation and so on, so it is widely used in aviation, aerospace, energy, electronics, automobile, light industry and other industrial sectors, is one of the important welding process.



Technical Parameter for ERW Steel Pipe

Tensile Strength

420-440Mpa

Yield Strength 0.2%

290

Elongation %

30

XT

OK

UT

OK

Water Pressure

OK

IMP

OK

Flat Test

OK

Surface

Painting Marking

Ends

Beveled and Caps

Packing

In bundles

With steel strip

Dimension

OD Size

219-820 mm

Thickness

6-25mm

Length

6-20m

Certificate

API 5L / ISO



 Description:



ERW steel pipe is straight weld pipe, electric resistance welding, the abbreviation for ERW for transporting oil and natural gas vapor liquid objects, can meet the requirements of high and low pressure, the transport in the world with pipe sector accounted for a pivotal position.



ERW tube is a "high frequency resistance welded steel pipe", and the common welded pipe welding process is not the same, the welding seam is made from the steel body of the base metal, the mechanical strength is better than the general welded pipe.



20# chemical component



Chemical



C

Si

Mn

S

P

Cr

Ni

Cu

component

0.17%~0.24%

0.17%~0.37%

0.35%~0.65%

≤0.035%

≤0.035%

≤0.25%

≤0.25%

≤0.25%





16Mn   C :0.13~0.19 Si :0.20~0.60 Mn :1.20~1.60 Cr≤0.30 P≤0.030 S≤0.030 Ni≤0.30 Cu≤0.25



ERW pipe is due to the use of hot-rolled coil as raw material, uniform wall thickness can be controlled at about +- 0.2mm, the two ends of the steel pipe according to the APL standard and GB / t9711.1 standard, end trimming hit groove, fixed length delivery and other advantages. In recent years, the natural gas pipeline network engineering and gas companies have been widely used ERW pipe as the main pipe network of the city.



Applications:



The pipe is for Fluid transport and Construction mostly used in industries as Coal gas, Steam, Water,

Petroleum, Natural gas.



Competitive Advantage:

Our factory is near to raw material market and high-speed way,  the producing cost is low.

Our factory have long history for trading ERW steel pipe, with large stocks.

We always cooperate with famous project and companies.



ERW Steel Pipe



Welding API 5L Carbon Steel ERW Steel Pipe OD Size 219 mm - 820mm For Construction
