Product Details:
Payment & Shipping Terms:
|
| Grade: | 304L | OD: | 1/8-1/4 Inch |
|---|---|---|---|
| Thk: | Sch5s-sch160 | Length: | 5-5.8m, 6, 12, U Shape Length |
| Process: | Anealing And Pickling | Treatment: | Cold Drawn/cold Rolled |
| Standard: | ASTM A269/JIS/DIN | Application: | Hext Exchanger |

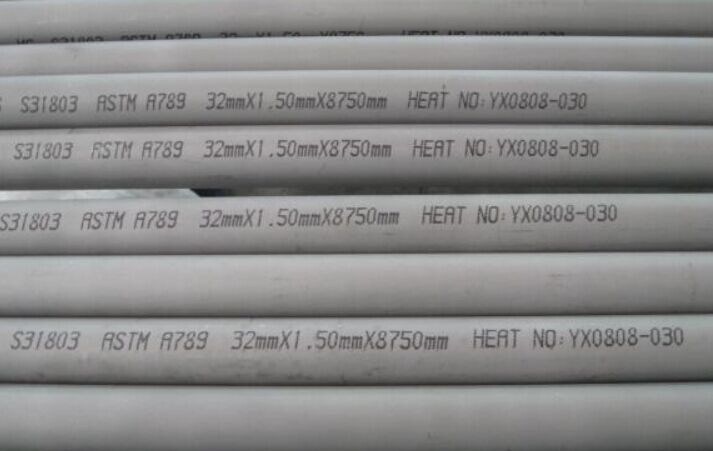

304L SS Heat Exchanger Tube Seamless Steel Pipe In Petroleum And Chemical
Specifications:
we produce seamless heat exhanger tube with grade of 304L, 321, 316L,S31803 etc
|
Technical Parameter for Heat Exchanger Tube |
Tensile Strength |
520-530Mpa |
|
Yield Strength 0.2% |
205 - 225 |
|
|
Elongation % |
35 - 38 |
|
|
Corrosion test |
ACCEPTABLE |
|
|
Flaring |
ACCEPTABLE |
|
|
Hydraulic |
ACCEPTABLE |
|
|
Eddy Current |
ACCEPTABLE |
|
|
PMI |
ACCRPTABLE |
|
|
Surface |
Acid wash, annealing |
|
|
Ends |
Beveled and Caps |
|
|
Packing |
Woven bags |
About 2ton for each bundle |
|
Dimension |
OD Size |
1 / 8 - 3 / 4 inch |
|
Thickness |
XS STD sch5 sch10 sch20 sch30 sch40 sch80 sch160 |
|
|
Length |
5 - 5.8m, 6m,double random length |
|
|
Certificate |
ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV |
|
Description:
Seamless steel tubes for heat exchangers are widely used in petroleum, chemical, thermal power, nuclear power, boiler manufacturing and so on.
In addition to the production of conventional heat exchanger tubes, can also produce over length (
Max 25M), ultra-thin series(Min0.5mm),And get the user.
Product manufacturing standard:
|
GB13296-2007 |
Stainless steel seamless tubes for boiler and heat exchanger |
|
ASTM A213/213M |
Boiler, superheater and heat exchanger for Seamless Ferritic and austenitic alloy steel |
|
EN 10216-5 |
Seamless steel tubes for pressure delivery conditions |
Major brands:TP304 TP304L TP304H TP316 TP316L TP316Ti TP316LN TP317 TP317L TP321 TP321H
TP347 TP347H TP310S UNS S31803 UNS S32205 UNS S32750 etc.
Product specification range:
φ16~76.2 x 0.4~10mm
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for producing heat exchanger tube, both producing and testing machine is
advanced and perfect.
We always cooperate with famous project and companies.
