Large Diameter 1/8 - 32 Inch Seamless Steel Plate Pipe Seamless Mechanical Tubing

China Large Diameter 1/8 - 32 Inch Seamless Steel Plate Pipe Seamless Mechanical Tubing supplier

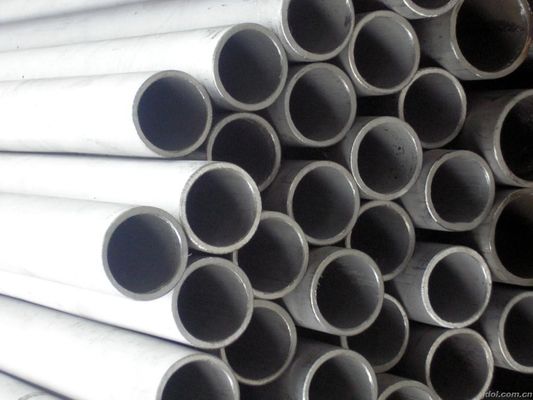

Large Image :  Large Diameter 1/8 - 32 Inch Seamless Steel Plate Pipe Seamless Mechanical Tubing

Product Details:

Place of Origin: China
Brand Name: SISCO
Certification: BV/ISO/LR/RINA/CCS/GL/ABS/DNV
Model Number: SIS-T121

Payment & Shipping Terms:

Minimum Order Quantity: 2 ton
Price: 2000usd/mt
Packaging Details: Packed in woven bag first, put bundle in wooden case
Delivery Time: 5-20 working days after received your payment
Supply Ability: 1000 tons per month
Detailed Product Description
Product Name: Stainless Steel Seamless Tube Application: Chemical,petroleum, Medicine, Food, Nuclear Power, Boiler, Gas, Machinery, Ship Building
Size (OD): 1 / 8 - 32 Inch Thickness: XS STD Sch5 Sch10 Sch20 Sch30 Sch40 Sch80 Sch160
Delivery Condition: Annealed Grade: 304L , F321 , 310S , 316L , 316Ti , 317 , 347H , 904L
Standard: ASTM / DIN / JIS / GB Treatment: Cold Rolled / Cold Drawn

Large Diameter 1/8 - 32 Inch Seamless Stainless Steel Pipe Seamless Mechanical Tubing





Specifications:



The yield strength (N/mm2 = 205)

The tensile strength is more than or equal to 520

The elongation rate (%) = 40

The hardness of HB = 187 HRB = 90 HV = 200

Density 7.93 cm-3 - G

C (20) J (0.502), (g, C) -1

Thermal conductivity of /W (m,) -1 (at the following temperature / C)

20 100 500 12.1 16.3 21.4

16.3 21.4 2010050012.1

Linear expansion coefficient A / (10-6/) (at the following temperatures / C)

20~10020~200 20~300 20~400

20 ~ 10020 ~ 30020 ~ 20020 ~ 400

16.0 16.8 17.5 18.1

16.8 17.5 18.1

Resistivity 0.73 - M-1 - mm2

Melting point 1398 ~ 1420





Packing

Woven bags

 About 2ton for each bundle

Dimension

OD Size

1/8 - 32 inch

Thickness

XS STD sch5 sch10 sch20 sch30

sch40 sch80 sch160

Length

5 - 5.8m, 6m,double random length

Certificate

ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV





Description:



Stainless steels are defined as ferrous alloys with the addition of at least 10.5% chromium by weight and are essentially low carbon steels containing significant amounts of chromium. It is the addition of chromium that gives this type of steel its corrosion resisting properties.




The chromium content of the steel allows the formation of an invisible corrosion resistant chromium oxide film on the steel surface. If damaged mechanically or chemically this film is self-healing providing that oxygen, even in very small amounts, is present. The corrosion resistance of stainless steel can be enhanced along with providing other useful properties by increasing the chromium content and by adding other elements such as molybdenum, nickel, and nitrogen





Tube Dimension and tolerance

tolerance class
OD tolerance
D1
±1.5%,min±0.75 mm
D2
±1.0%.min±0.50 mm
D3
±0.75%.min±0.30 mm
D4
±0.50%.min±0.10 mm



Applications:



Used in industries as chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace,

environmental protection, boiler, gas, war industry, machinery, ship building and so on.





Competitive Advantage:



Our factory is near to raw material market and high-speed way,  the producing cost is low.

Our factory have long history for producing stainless steel seamless tube,both producing and testing

machine is advanced and perfect.

Our factory was certificated by BV/ISO/LR/RINA/CCS/GL/ABS/DNV, which can improve the quality.

We participated in many famous projects with our tubes.
