Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Seamless Tube | Application: | Chemical,petroleum, Medicine, Food, Nuclear Power, Boiler, Gas, Machinery, Ship Building |
|---|---|---|---|
| Size (OD): | 1 / 8 - 32 Inch | Thickness: | XS STD Sch5 Sch10 Sch20 Sch30 Sch40 Sch80 Sch160 |
| Delivery Condition: | Annealed | Grade: | 304L , F321 , 310S , 316L , 316Ti , 317 , 347H , 904L |
| Standard: | ASTM / DIN / JIS / GB | Treatment: | Cold Rolled / Cold Drawn |

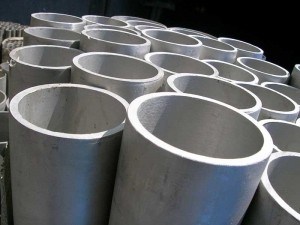

3" Schedule 80 904l Stainless Steel Seamless Boiler Tube 5m - 6m Length
Specifications:
Stainless steel seamless pipe is a hollow cross section, the surrounding no seams of long steel. The wall is thicker, it is more economical and practical, the wall thickness of the thinner, processing costs will be substantially increased it; the product process to determine its performance limitations, generally low precision seamless steel pipe: uneven thickness, the appearance of low brightness tube length into this is high, and the inner surface pitting and black spots difficult to remove; detection and plastic must be processed offline. So it is in high pressure, high strength, mechanical structure of the material reflects its superiority.
|
Technical Parameter for Seamless Pipe |
Tensile Strength |
520-530Mpa |
|
Yield Strength 0.2% |
205 - 225 |
|
|
Elongation % |
35 - 38 |
|
|
Corrosion test |
ACCEPTABLE |
|
|
Flaring |
ACCEPTABLE |
|
|
Hydraulic |
ACCEPTABLE |
|
|
Eddy Current |
ACCEPTABLE |
|
|
PMI |
ACCRPTABLE |
|
|
Surface |
Acid wash, annealing |
|
|
Ends |
Beveled and Caps |
|
|
Packing |
Woven bags |
About 2ton for each bundle |
|
Dimension |
OD Size |
1/8 - 32 inch |
|
Thickness |
XS STD sch5 sch10 sch20 sch30 sch40 sch80 sch160 |
|
|
Length |
5 - 5.8m, 6m,double random length |
|
|
Certificate |
ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV |
|
Description:
|
Name
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Mo
|
Cu
|
|
904L
|
≤0.02
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.035
|
19.00～23.00
|
23.00～28.00
|
4.0～5.0
|
1.00～2.00
|
Applications:
Used in industries as chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace,
environmental protection, boiler, gas, war industry, machinery, ship building and so on.
Competitive Advantage:
Our factory is near to raw material market and high-speed way, the producing cost is low.
Our factory have long history for producing stainless steel seamless tube,both producing and testing
machine is advanced and perfect.
Our factory was certificated by BV/ISO/LR/RINA/CCS/GL/ABS/DNV, which can improve the quality.
We participated in many famous projects with our tubes.
